DEATSCHWERKS - DW300 340lph In-Tank Fuel Pump w/Install Kit
AU$264.95
In stock
1
Save this product for later
DEATSCHWERKS - DW300 340lph In-Tank Fuel Pump w/Install Kit
Product Details
Description
DeatschWerks is the Source for your full fuel system needs. At DW you will find nothing but the highest quality fuel injectors, fuel pumps and more.
Specifications
The DW300 fuel pump has been specifically designed and tested for compatibility with gasoline and ethanol. DeatschWerks products are manufactured and sold for non-road vehicles used solely for competition.
DW300 at 13.5 volts
| PSIG | AMPS | LPH | BHP |
| 30 | 11.4 | 360 | 1140 |
| 40 | 12.0 | 340 | 1075 |
| 50 | 12.5 | 325 | 1030 |
| 60 | 13 | 305 | 965 |
| 70 | 13.7 | 290 | 920 |
| 80 | 14.4 | 275 | 870 |
| 90 | 15.1 | 255 | 810 |
| 100 | 15.9 | 235 | 745 |
Flow Data Notes:
- Data collected in-house on King 7500 series flow meter.
- Values represent a 10 pump average.
- Results independently verified by 3rd party testing.
- BHP horsepower figures are approximate values and can vary greatly from car to car.
Mechanical Specs
- Weight - 12.6oz (360grams)
- External Materials - Electroplated steel
- Inlet Fitting - 7.7mm ID, 11.0mm OD
- Outlet Fitting - 5/16" hose clamp
- PRV Activation - 100psi
- Impeller Design - Single Scroll Composite Turbine
Electical Specs
- Connector Terminal - Spade pos/neg
- Min Voltage Input - 6 volts
- Max Voltage Input - 18 volts
- Current Draw - 10-14 amps (13.5v)

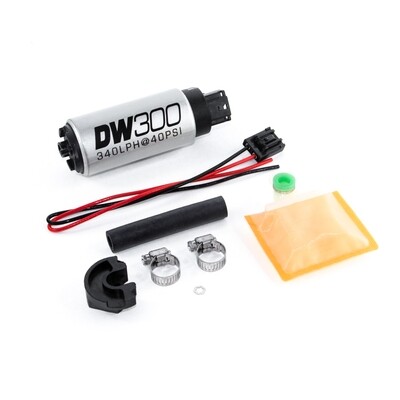

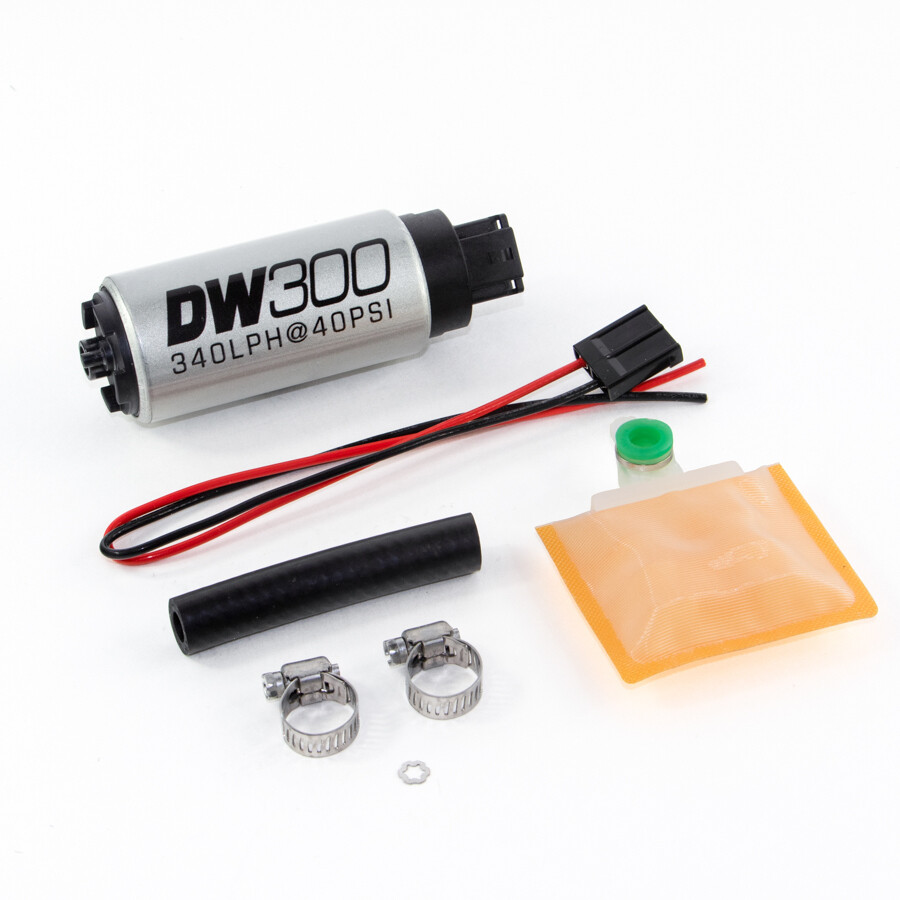

What's Included
- 2" x 2" Sock
- Electrical Connector
- 4" of Fuel Line
- Miscellaneous Hardware
Compatibility
- Universal
