Dual ceramic ball bearing system provides optimal turbo response &
better durability by reducing the shaft-motion

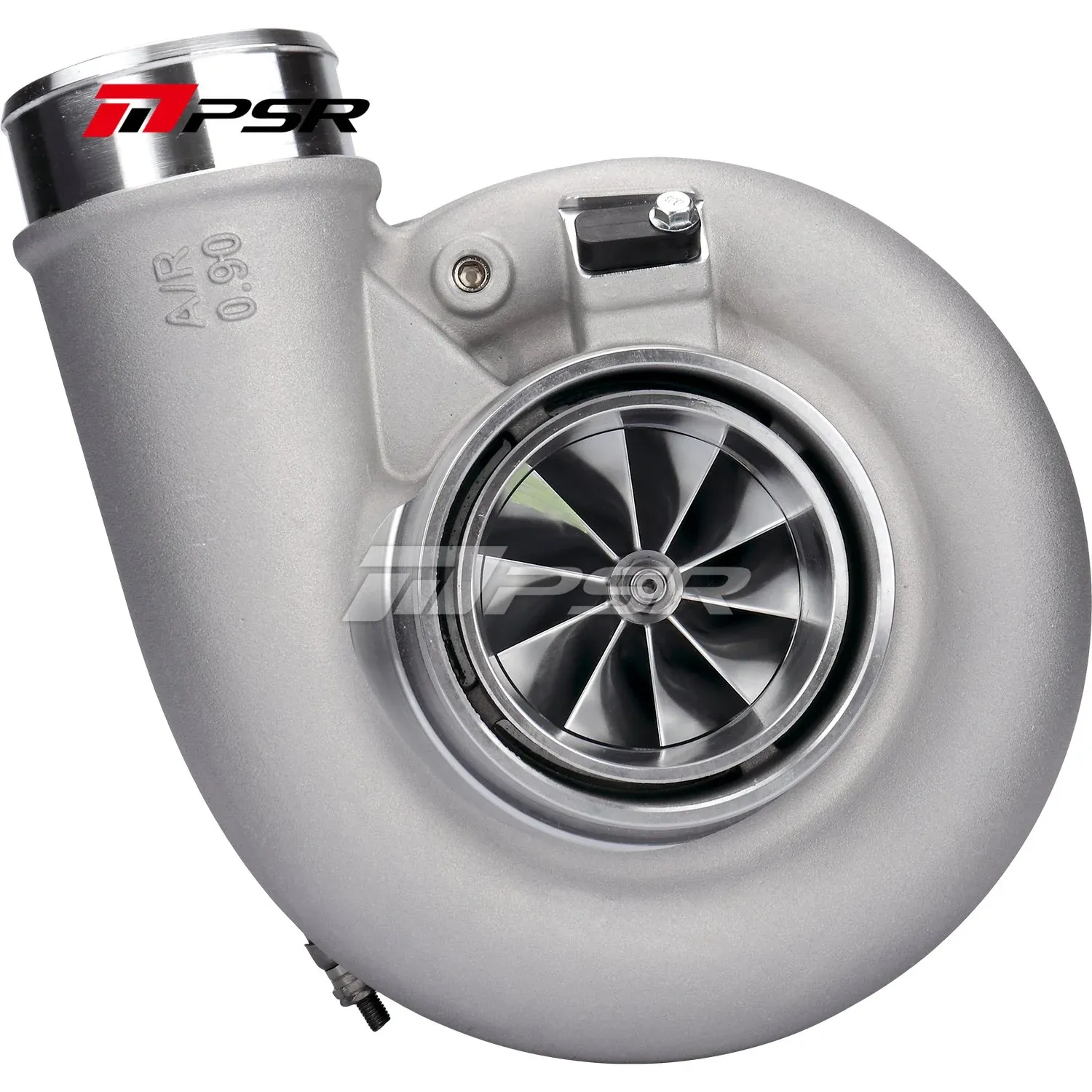

10 Blade G-Aero billet compressor wheel with extended tapered tip technology
9 Blade G-Aero Inconel 713c turbine wheel
Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port
8 Options in Turbine Housing
Installation Hardware: 3” flange kit for Comp. Outlet, T4 Gasket/3” flange kit for Turb. Inlet, 3.5”/4” flange kit for Turb. Outlet and oil Drain Fitting kit are included by default
Oil Feed Fitting needs to be bought separately
Compressor Wheel: 79*98mm
Turbine Wheel: 82*75mm
Compressor Inlet: 4″ Hose
Compressor Outlet: 3″ hose
Water Ports: -6AN
Oil Feed: Flange Required
Oil Drain: -12AN(O-Ring sealed Flange Kit Incl’)
Comes with Inlet flange and clamp (DVB) and Outlet flange and clamp
TURBINE HOUSING OPTIONS:
T4(Divided) inlet, Vband outlet (fits 4″ OD tubing), 1.01 A/R
T4(Open) inlet, Vband outlet (fits 3.5″ OD tubing), 1.15 A/R
T4(Divided) inlet, Vband outlet (fits 4″ OD tubing), 0.95A/R
T4(Divided) inlet, Vband outlet (fits 3.5″ OD tubing), 1.15 A/R
T4(Divided) inlet, Vband outlet (fits 4″ OD tubing), 1.28 A/R
Vband inlet (fits 3″ OD tubing) and Vband outlet (fits 3.5″ OD tubing), 1.01 A/R
Vband inlet (fits 3″ OD tubing) and Vband outlet (fits 3.5″ OD tubing), 1.15 A/R
Vband inlet (fits 3″ OD tubing) and Vband outlet (fits 3.5″ OD tubing), 1.28 A/R
