POWERTUNE DIGITAL DASH (GPS OPTIONAL)

Bundle includes:

1 x Powertune Digital Dash

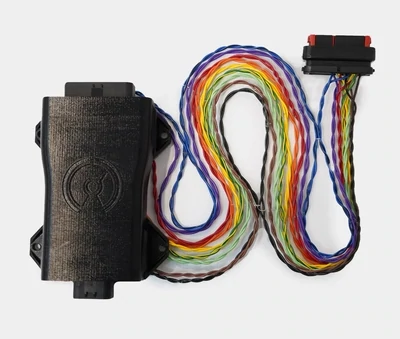

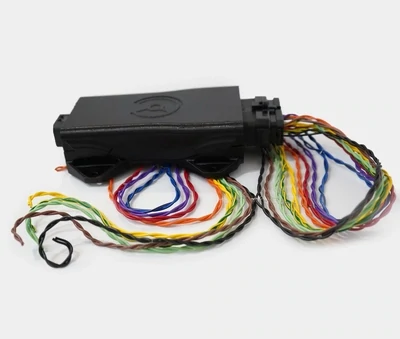

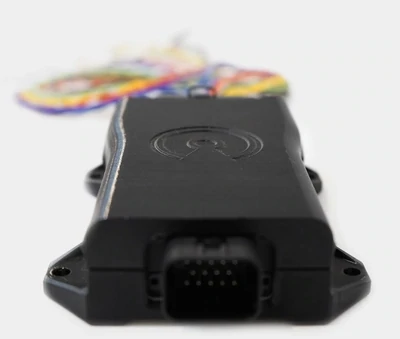

1 x Powertune Digital CAN EXTENDER

Display your ECU data in real time with precision for a fraction of the price expected

The Powertune Digital Standalone dash is capable of receiving up to 16 channels, including tachometer, from analogue and digital input sources via the CAN extender, from external sensors such as fuel level, temperatures/pressure to indicators and lights, wire your desired items to the extender which then broadcasts the live data to your dash. No factory OR standalone ECU required! The standalone can also simultaneously read ECU data from a supported ECU!

• Provides up to 8 analogue (voltage OR resistance based) and 8 digital inputs which can be broadcast via CAN to receiving dash/device.
• Compatible with aftermarket or factory sensors!
• Works standalone, does not require an aftermarket or Factory ECU. Can also work alongside either a factory or aftermarket ECU already installed!
• Adjustable CAN speeds and CAN IDs
• Onboard 5V power supply to power external sensors

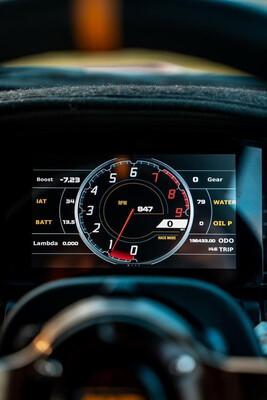

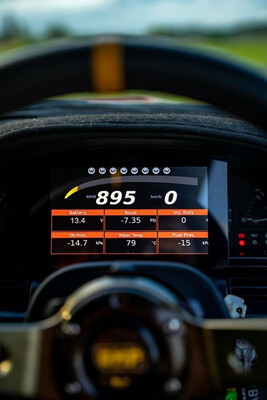

The powertune full RGB Touchscreen dash offers;

- Unlimited customisation

- Up to four active display modes

- Easy to install plug and play kit with datalogging and lap timer capability.

- GPS Speedo / ODO capability

- NO lag at all in data display

- Adjustable RPM / Shift lights

- Go Pro camera integration

- Virtual drag timer showing 1/4 & 1/8 times

Compatible with any vehicle using the following ecu;

Haltech, Link/Vipec, Aem, Motec, Hondata, Microtech, Emtron, Apexi FC & more.

The ultimate digital dash for your car!

• Customize to your desired sensor outputs, display themes, preferred RPM and shift light settings
• Set customised gauge warnings and master warnings for sensor ranges and states
• Make adjustments for speed corrections (changed wheel size, inaccurate mechanical gauges)
• 7" LCD display (still completely visible with direct sunlight)
• Virtual drag/quarter mile timer

Stock ECU Compatibility;

- GM motors (LS2, LS3, L98/L77, LSA, LS7, LSX, Duramax Diesels

- Ford Barra / Coyote Stock ECU: BA/BF/FG 6/8cyl

- Toyota 86/BRZ/FRS

- Nissan 370z

- Subaru WRX 2008-2015

- Mitsubishi Lancer Evo
