Mantic Twin Organic Cushioned Sprung Clutch Kit (Camaro 11-15/Senator 04-13)

Mantic Track Multiplate clutch kits are made to circumvent the normal restrictions facing a single plate kit by increasing the effective surface area available. Where a single plate system will strain a vehicle's hydraulic system at a certain point, the engineering in Mantic multi-plate systems supplies a large torque capacity increase without the drawback of decreasing the clutch's effective service life.

This Mantic Track Twin clutch kit has been designed with driveability in mind, supplying a considerable increase in torque over OE systems without encroaching on the clutch's ability to shift smoothly between gears.

Mantic clutch kits also feature an aluminium track cover assembly which significantly reduces the moment of inertia (MOI) that acts on crank rotation mass. The lightweight construction of the assembly cover means your vehicle accelerates more easily and smoothly.

Owing to the organic friction material on both sides of the clutch plate, this system retains excellent street driveability compared to ceramic and cerametallic systems while still delivering a significant torque increase thanks to the multi-plate system.

SPECS

• Multiplate (twin) clutch system for increased effective surface area
• Organic friction material retains street driveability
• Aluminium track cover assembly for improved acceleration

Clutch Plate Dimensions: 225 x 26T x 29.0
Torque Capacity Peak: 1230Nm, Rated: 820Nm

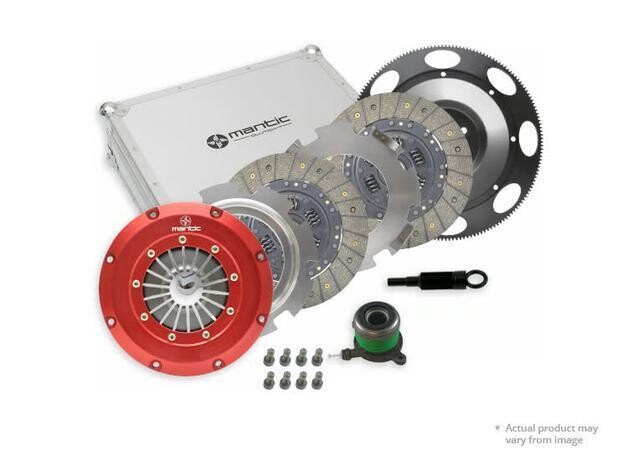

WHAT'S INCLUDED

• Mantic Aluminium Billet Cover Assembly
• Twin Organic Clutch Plates
• Release bearing
• Clutch Alignment Tool

SUITS VEHICLE

• 2011 - 2015 Chevrolet Camaro 6.2 LS3 Coupe
• 2011 - 2015 Chevrolet Camaro 6.2 LS3 Convertible
• 2004 - 2013 Chevrolet Corvette 6.0 (C6) 298kw Coupe
• 2006 - 2013 Chevrolet Corvette Z06 7.0 (C6) 377kw Coupe
• 2004 - 2013 Chevrolet Corvette 6.0 (C6) 298kw Convertible
• 2003 - 2004 Holden Adventra VY 5.7 V8 AWD Wagon
• 2004 - 2006 Holden Crewman VZ 5.7 V8 AWD Ute
• 2003 - 2004 Holden One Tonner VY 5.7 V8 Cab Chassis
• 2004 - 2005 Holden One Tonner VZ 5.7 V8 Cab Chassis
• 2004 - 2006 Holden Commodore VZ 5.7 V8 Ute
• 2003 - 2004 Holden Monaro V2 CV8 5.7 V8 Coupe
• 2006 - 2010 Holden Statesman WM 6.0 V8 Sedan
• 1999 - 2000 HSV Clubsport VT 5.7 V8 (250kw) Sedan
• 2000 - 2002 HSV Clubsport VX 5.7 V8 (255kw) Sedan
• 2002 - 2003 HSV Clubsport VY 5.7 V8 (260kw) Sedan
• 2003 - 2004 HSV Clubsport VY 5.7 V8 (285kw) Sedan
• 2004 - 2006 HSV Clubsport VZ 6.0 V8 (297kw) Sedan
• 2002 - 2003 Holden Commodore VY 5.7 V8 Ute
• 2000 - 2002 Holden Commodore VU 5.7 V8 Ute
• 1997 - 1999 HSV Senator VT 5.7 V8 (220kw) Sedan
• 1997 - 1999 HSV Senator VT 5.7 V8 (230kw) Sedan
• 1997 - 1999 HSV Senator VT 5.7 V8 (250kw) Sedan
• 2006 - 2006 Holden Caprice WL 6.0 V8 Sedan
• 2006 - 2006 Holden Commodore VZ 6.0 V8 Sedan Notes: Excludes OEM Style Self-adjusting Clutch
• 2006 - 2007 Holden Commodore VZ 6.0 V8 Ute
• 2004 - 2005 Holden Commodore VZ 5.7 V8 Wagon
• 2006 - 2006 Holden Crewman VZ 6.0 V8 AWD Ute
• 2004 - 2006 Holden Crewman VZ 5.7 V8 Ute
• 2006 - 2007 Holden Crewman VZ 6.0 V8 Ute Notes: Stage 2 Clutch
• 2006 - 2013 Holden Caprice WM 6.0 V8 Sedan
• 2008 - 2013 Chevrolet Corvette 6.2 (C6) 321kw Coupe
• 2008 - 2013 Chevrolet Corvette 6.2 (C6) 321kw Convertible
• 2003 - 2004 Holden Crewman VY 5.7 V8 Ute
• 2006 - 2006 Holden Crewman VZ SS 6.0 V8 Ute Notes: Stage 2 Clutch
• 2000 - 2001 HSV GTS VX 5.7 V8 (300kw) Sedan
• 2002 - 2004 HSV GTS VY 5.7 V8 (300kw) Sedan
• 2008 - 2010 HSV GTS VE 6.2 V8 (317kw) Sedan
• 2004 - 2007 HSV GTO VX,VZ 6.0 V8 (297kw) Coupe
• 2006 - 2008 HSV Clubsport VE 6.0 V8 (307kw) Sedan
• 2008 - 2013 HSV Clubsport VE 6.2 V8 (317kw) Sedan
• 2007 - 2008 HSV Grange WM 6.0 V8 (307kw) Sedan
• 2008 - 2010 HSV Grange WM 6.2 V8 (317kw) Sedan
• 2000 - 2002 HSV Senator VX 5.7 V8 (255kw) Sedan
• 2002 - 2003 HSV Senator VY 5.7 V8 (260kw) Sedan
• 2003 - 2004 HSV Senator VY 5.7 V8 (285kw) Sedan
• 2006 - 2008 HSV Senator VE 6.0 V8 (307kw) Sedan
• 2008 - 2013 HSV Senator VE 6.2 V8 (317kw) Sedan
• 2004 - 2006 HSV Senator VZ 6.0 V8 (297kw) Sedan
• 2008 - 2013 HSV W427 VE 7.0 V8 (375kw) Sedan
• 2005 - 2006 HSV SV6000 VZ 6.0 V8 (297kw) Sedan
• 2001 - 2002 HSV Maloo VU 5.7 V8 (255kw) Ute
• 2004 - 2007 HSV Maloo VZ 6.0 V8 (297kw) Ute
• 2007 - 2008 HSV Maloo VE 6.0 V8 (307kw) Ute
• 2008 - 2013 HSV Maloo VE 6.2 V8 (317kw) Ute
• 2002 - 2003 HSV Maloo VY 5.7 V8 (260kw) Ute
• 2003 - 2004 HSV Maloo VY 5.7 V8 (285kw) Ute
• 2002 - 2003 Holden Commodore VY 5.7 V8 Sedan
• 2004 - 2005 Holden Commodore VZ 5.7 V8 Sedan
• 2002 - 2003 Holden Commodore VY 5.7 V8 Wagon
• 2006 - 2007 Holden Commodore VZ 6.0 V8 Wagon
• 2004 - 2006 Holden Monaro VZ 5.7 V8 Coupe
• 1999 - 2000 Holden Commodore VT 5.7 V8 Sedan
• 2000 - 2002 Holden Commodore VX 5.7 V8 Sedan
• 1999 - 2000 Holden Commodore VT 5.7 V8 Wagon
• 2000 - 2002 Holden Commodore VX 5.7 V8 Wagon
• 2008 - 2013 HSV Clubsport VE 6.2 V8 (317kw) Wagon
• 2010 - 2013 HSV GTS VE 6.2 V8 (325kw) Sedan
• 2010 - 2013 HSV Grange WM 6.2 V8 (325kw) Sedan
• 2012 - 2013 HSV Clubsport VE 6.2 V8 (325kw) Sedan
• 2015 - 2017 Holden Commodore VF SS 6.2 V8 Series II (304kw) Sedan
• 2015 - 2017 Holden Commodore VF SS 6.2 V8 Series II (304kw) Wagon
• 2015 - 2017 Holden Commodore VF SS 6.2 V8 Series II (304kw) Ute
• 2015 - 2017 Holden Caprice WN 6.2 V8 Sedan
• 2004 - 2006 HSV Grange WL 6.0 V8 (298kw) Sedan
• 2006 - 2013 HSV Senator VE 6.0 V8 (297kw) Sedan
• 2013 - 2017 HSV Maloo VF 6.2 V8 (340kw) Ute
• 2004 - 2006 Pontiac GTO GenIV 300kw Coupe
• 2000 - 2002 HSV Senator VX 5.7 V8 (300kw) Sedan
