Name: HOLLEY - LS HI-RAM EFI Manifold (GM LS1/LS2/LS6)
Brand: HOLDEN
SKU: 300-123
Price: 1975.95 AUD
Availability: InStock

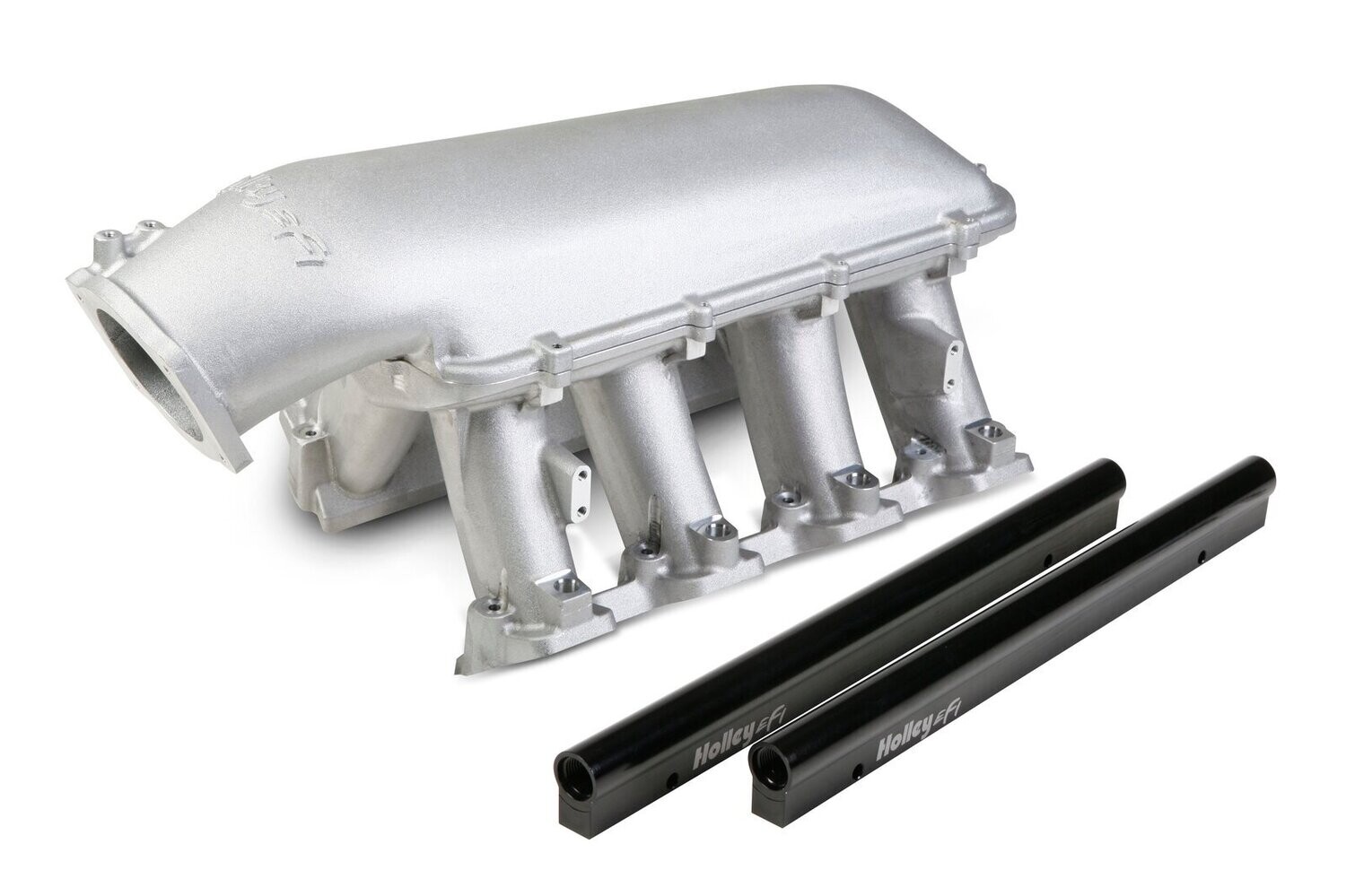

HOLLEY - LS HI-RAM EFI Manifold (GM LS1/LS2/LS6)

Product Details

The Holley GM LS1/LS2/LS6 Modular Hi-Ram Intake Manifold is introduced as a cost effective alternative to fabricated sheet-metal for high-performance applications where induction system height is not limited. Coupling this Hi-Ram intake with the high flowing LS1/LS2/LS6 style cylinder heads has outstanding potential for N/A and forced induction applications at a budget-minded cost. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more!

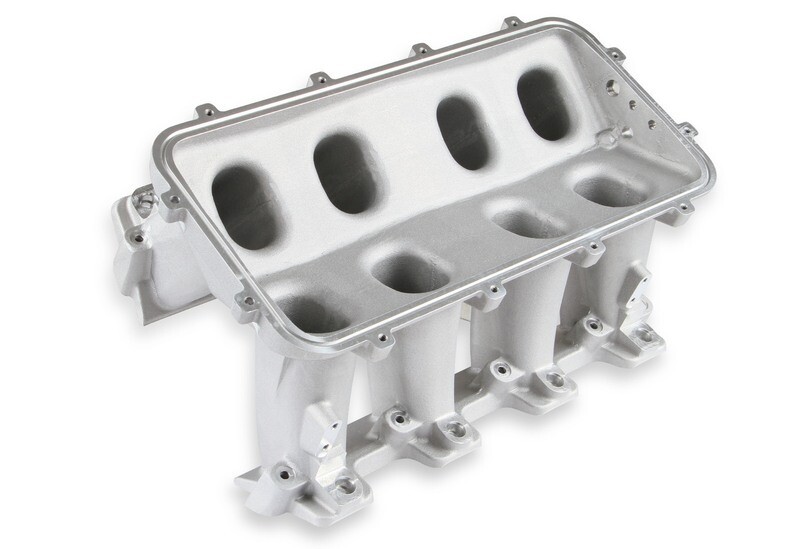

The base is designed to be modular in configuration to accept a wide range of carbureted and EFI tops and to be attractive to builders and fabricators as the foundation for custom induction systems.
Runner length and the tapered cross-section designed to perform well for a wide range of engine configurations
EFI fuel rails are machined for -8AN O-ring Fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits.
Cast aluminum construction.
Intended for use on N/A or forced induction engines in the 6.0 to 7.0+ liter range, max power at 7000-8000+RPM.

FEATURES:

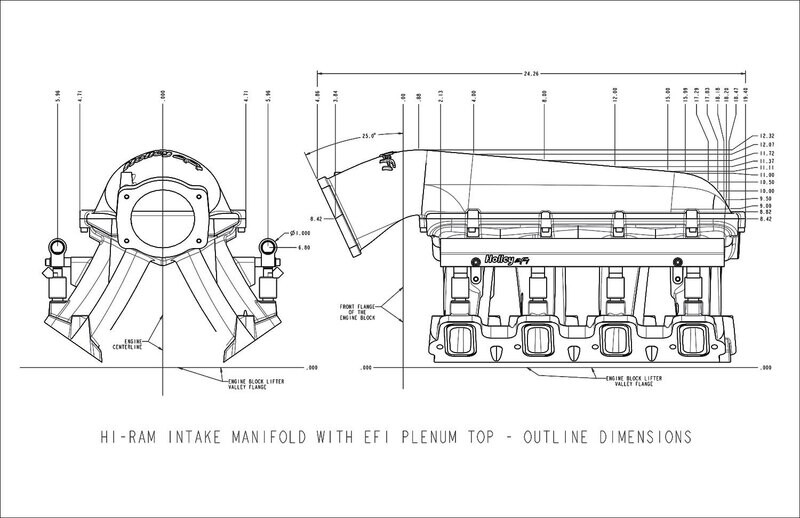

Base Plenum Top Mounting Flange Height – 8.42” to the lifter valley cover flange on engine block.
Total Height with 92/105mm EFI Plenum Top – 12.32” to the lifter valley cover flange on engine block.
Runner Length – 6.58”, As-Cast Runner Cross-Sectional Area – Tapered 4.25 in² to 2.53 in²
Throttle Body Flange Location, with 102mm EFI Plenum Top : Height – 8.42” (from engine block lifter valley cover flange), Longitudinal Location – 3.84” (forward from engine block front flange), Angle – 25 deg. (down from vertical)
Plenum Top Gasket Type – 3/32” Round O-ring Cord
Mounting Flange Gasket Type – Standard LS3 Molded O-Ring
Port Size – 2.49” Height x 1.21” Wide

SPECS:

Brand: Holley EFI
Color: Black
Construction: Cast
Emission Code: 3 / 4
Engine: GM LS1/LS2/LS6
Finish: Black
Front Height: 12.32 inch
Fuel System Type: EFI
Manifold Type: Hi-Ram
Product Type: Intake Manifold
Rear Height: 11.00 inch
Recommended Use: Forced Induction
RPM Power Band: 3500-8000 RPM
Warranty: Limited 90 Day
UPC: 90127688908
Part Number: 300-122BK

SUITS:

1997-2004 Chevrolet Corvette C5
1998-2002 Pontiac FirebirdFormula, Trans Am
1998-2002 Chevrolet Camaro Z28
1998-2002 Chevrolet Camaro SS
2004 Pontiac GTO
2001-2004 HSV GTO
1999-2005 Holden Statesman
2001-2005 Holden Monaro
2001-2004 Chevrolet Corvette C5 Z06
2004-2005 Cadillac CTS V-Series
2007-2008 SSC Ultimate Aero TT
