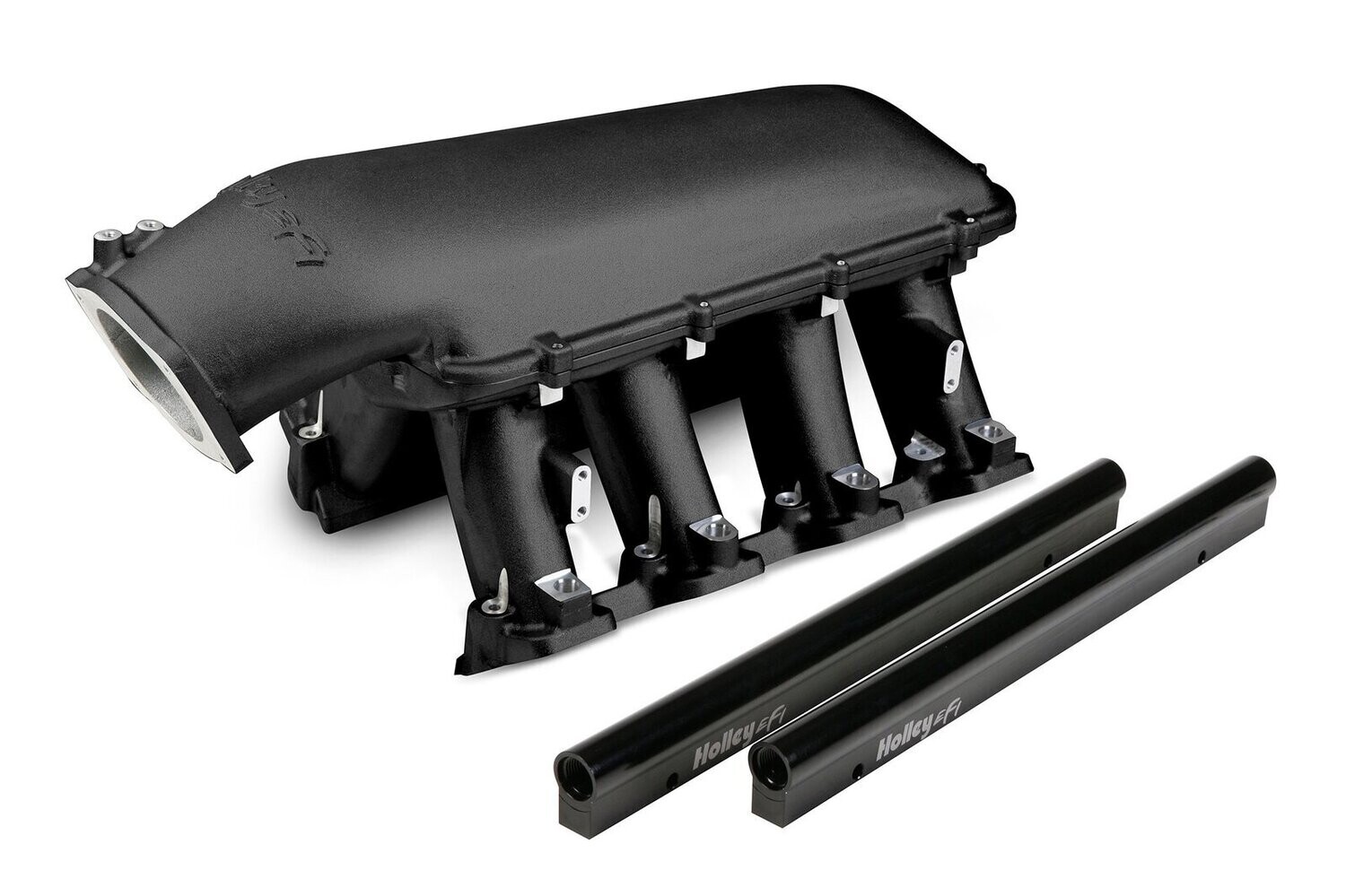

HOLLEY - LS HI-RAM EFI Manifold - Black (GM LS1/LS2/LS6)

The Holley GM LS1/LS2/LS6 Modular Hi-Ram Intake Manifold is introduced as a cost effective alternative to fabricated sheet-metal for high-performance applications where induction system height is not limited. Coupling this Hi-Ram intake with the high flowing LS1/LS2/LS6 style cylinder heads has outstanding potential for N/A and forced induction applications at a budget-minded cost. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more!

• The base is designed to be modular in configuration to accept a wide range of carbureted and EFI tops and to be attractive to builders and fabricators as the foundation for custom induction systems.

• Runner length and the tapered cross-section designed to perform well for a wide range of engine configurations

• EFI fuel rails are machined for -8AN O-ring Fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits.

• Cast aluminum construction.

• Intended for use on N/A or forced induction engines in the 6.0 to 7.0+ liter range, max power at 7000-8000+RPM.

FEATURES:

• Base Plenum Top Mounting Flange Height – 8.42” to the lifter valley cover flange on engine block.
• Total Height with 92/102mm EFI Plenum Top – 12.32” to the lifter valley cover flange on engine block.
• Port Size – 2.49” Height x 1.21” Wide
• Mounting Flange Gasket Type – Standard LS3 Molded O-Ring
• Plenum Top Gasket Type – 3/32” Round O-ring Cord
• Throttle Body Flange Location, with 92mm EFI Plenum Top : Height – 8.42” (from engine block lifter valley cover flange), Longitudinal Location – 3.84” (forward from engine block front flange), Angle – 25 deg. (down from vertical)
• Runner Length – 6.58”, As-Cast Runner Cross-Sectional Area – Tapered 4.25 in² to 2.53 in²

SPECS:

• Brand: Holley EFI
• Color: Black
• Construction: Cast
• Emission Code: 3 / 4
• Engine: GM LS1/LS2/LS6
• Finish: Black
• Front Height: 12.32 inch
• Fuel System Type: EFI
• Manifold Type: Hi-Ram
• Product Type: Intake Manifold
• Rear Height: 11.00 inch
• Recommended Use: Forced Induction
• RPM Power Band: 3500-8000 RPM
• Warranty: Limited 90 Day
• UPC: 90127688908
• Part Number: 300-122BK

SUITS:

• 1997-2004 Chevrolet Corvette C5
• 1998-2002 Pontiac FirebirdFormula, Trans Am
• 1998-2002 Chevrolet Camaro Z28
• 1998-2002 Chevrolet Camaro SS
• 2004 Pontiac GTO
• 2001-2004 HSV GTO
• 1999-2005 Holden Statesman
• 2001-2005 Holden Monaro
• 2001-2004 Chevrolet Corvette C5 Z06
• 2004-2005 Cadillac CTS V-Series
• 2007-2008 SSC Ultimate Aero TT
