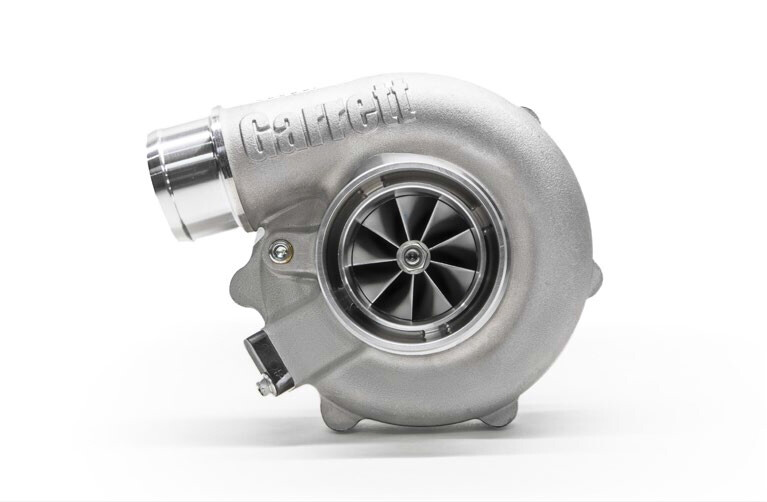

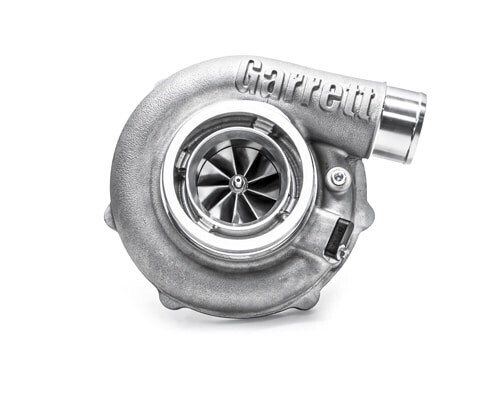

GARRETT G30-770

Introducing performance out of a package you never thought possible. This clean sheet product is tailored to meet the demands of hard core racing enthusiasts while providing industry leading power capability in a small package.

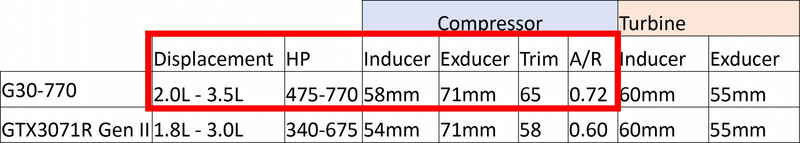

The G-Series G30-770 turbocharger is compatible with 2.0L – 3.5L engine displacements and capable of producing up to 770 horsepower. G Series 30 turbochargers are highly efficient and will outflow all comparable products on the market.

New compressor and turbine aero combined with high temperature resistant materials allowed engineers to push the limits of performance.

A new name designates a new generation of industry leading technology and innovation.

Features

• New G Series compressor wheel aerodynamics

• Fully machined speed sensor and pressure ports

• Standard and reverse rotation configurations available

• Oil restrictor and water fittings included
• Fully machined speed sensor and pressure ports
• One piece center housing and backplate

• 4 water jacket ports for customizable installation

• Mar-M turbine wheel material rated up to 1050° C | 1922° F
• Stainless steel turbine housings for temperatures up to 1050° C | 1922° F
