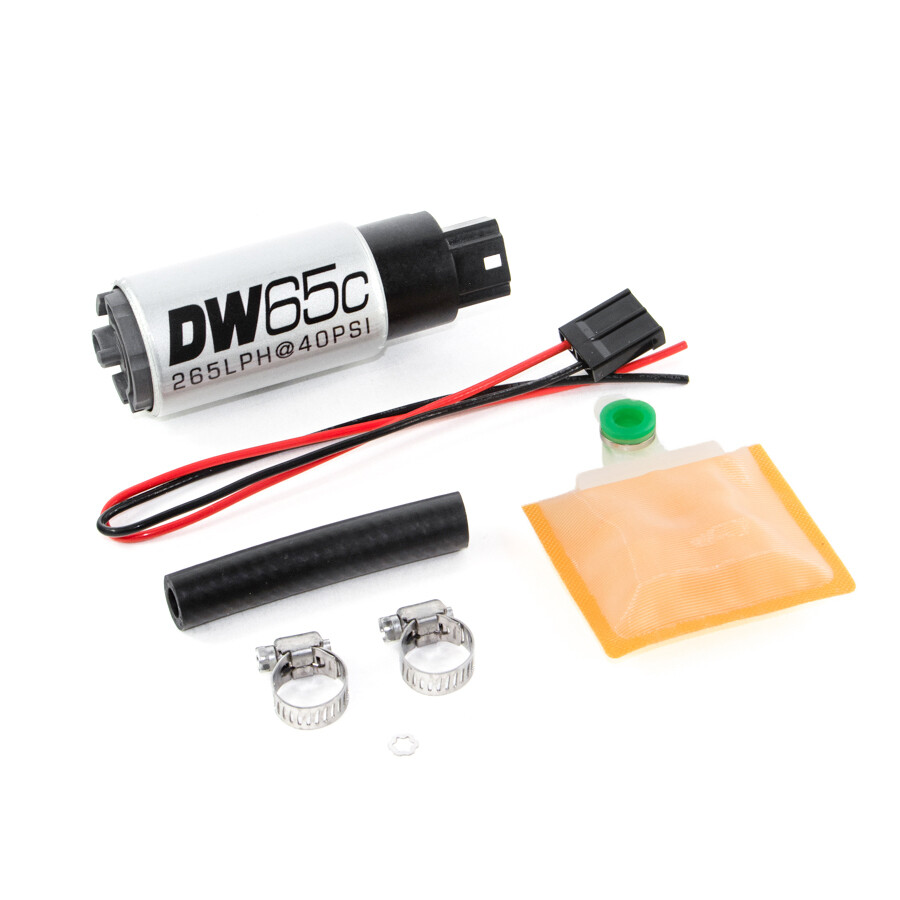

DEATSCHWERKS - DW65C 265lph Compact Fuel Pump w/Install Kit
AU$249.95
or four payments of AU$62.49 each withView details
In stock
1
Save this product for later
DEATSCHWERKS - DW65C 265lph Compact Fuel Pump w/Install Kit
Product Details
Description
DeatschWerks is the Source for your full fuel system needs. At DW you will find nothing but the highest quality fuel injectors, fuel pumps and more.
Specifications
DW65c at 13.5 Volts
| PSIG | AMPS | LPH | BHP |
|---|---|---|---|
| 30 | 10.8 | 280 | 910 |
| 40 | 11.4 | 265 | 865 |
| 50 | 11.9 | 250 | 815 |
| 60 | 12.6 | 235 | 765 |
| 70 | 13.2 | 220 | 720 |
| 80 | 13.8 | 210 | 685 |
| 90 | 14.2 | 190 | 620 |
| 100 | 14.6 | 170 | 555 |
Flow Data Notes:
- Displayed data represents a 10 pump average of results collected in-house.
- Every fuel pump is tested by DeatschWerks to be within specifications for flow, PRV activation, and amperage draw.
- BHP horsepower figures are for approximation only and can vary significantly depending on your set-up
Mechanical Specs
- Weight - 10.1oz (285grams)
- External Materials - Electroplated steel
- Inlet Fitting - 7.7mm ID, 11.0mm OD
- Outlet Fitting - 5/16" hose clamp
- PRV Activation - 100psi
- Impeller Design - Single Scroll Composite Turbine
Electrical Specs
- Connector Terminal - Spade pos/neg
- Min Voltage Input - 6 volts
- Max Voltage Input - 18 volts
- Current Draw (40 psi) - 12 amps (13.5v)
- Current Draw (80 psi) - 15 amps (13.5v)
What's Included
- DW65c, 9.651
- Fuel Sock
- (2) 3.116 O.Rings
- Fuel Sock Retainer Clip
- Super Lube
Compatibility
- Universal
