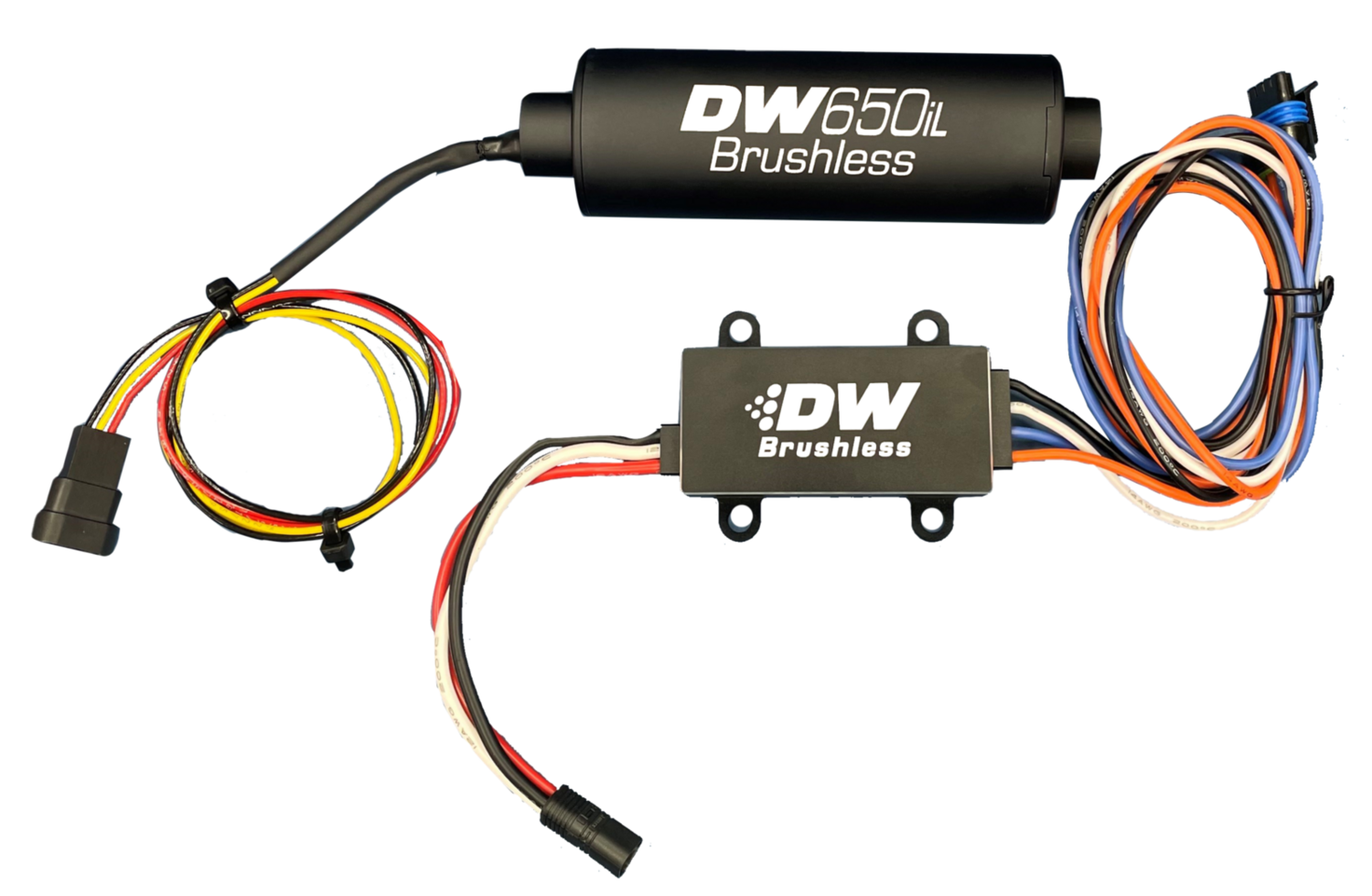

DEATSCHWERKS - DW650iL 650LPH Brushless In-Line Fuel Pump with PWM Controller
AU$1 469.95
In stock
1
Save this product for later
DEATSCHWERKS - DW650iL 650LPH Brushless In-Line Fuel Pump with PWM Controller
Product Details
Description
The DW650iL brings brushless technology to DW's line of in-line fuel pumps.
Brushless technology reduces friction and heat, increases effeciency, vastly improves pump lifespan in ethanol and methanol fuels, and allows higher voltage inputs for increased flow.
This version with PWM Controller allows your DW650iL Brushless to be fullycontrolled by your existing OE or aftermarket fuel pump control module's PWM signal.
Specifications
- 650 Litres per Hour (see Tech Sheet for detailed information)
- Weight: 622 grams (22 oz)
- External Materials: Hard Anodised Aluminium
- Inlet Fitting: -8AN ORB
- Outlet Fitting: -8AN ORB
- Impeller Design: Positive Displacement Screw
- Min Voltage Input: 8 Volts
- Max Voltage Input: 26 Volts
- Current Draw 40psi: 7.6 Amps (13.5v)
- This pump does not have an internal check valve
- Optional In-Tank Install Kit Available (SKU: 9-0950)
What's Included
- DW650iL Brushless Fuel Pump
- C103 PWM Controller
Compatibility
- Universal
