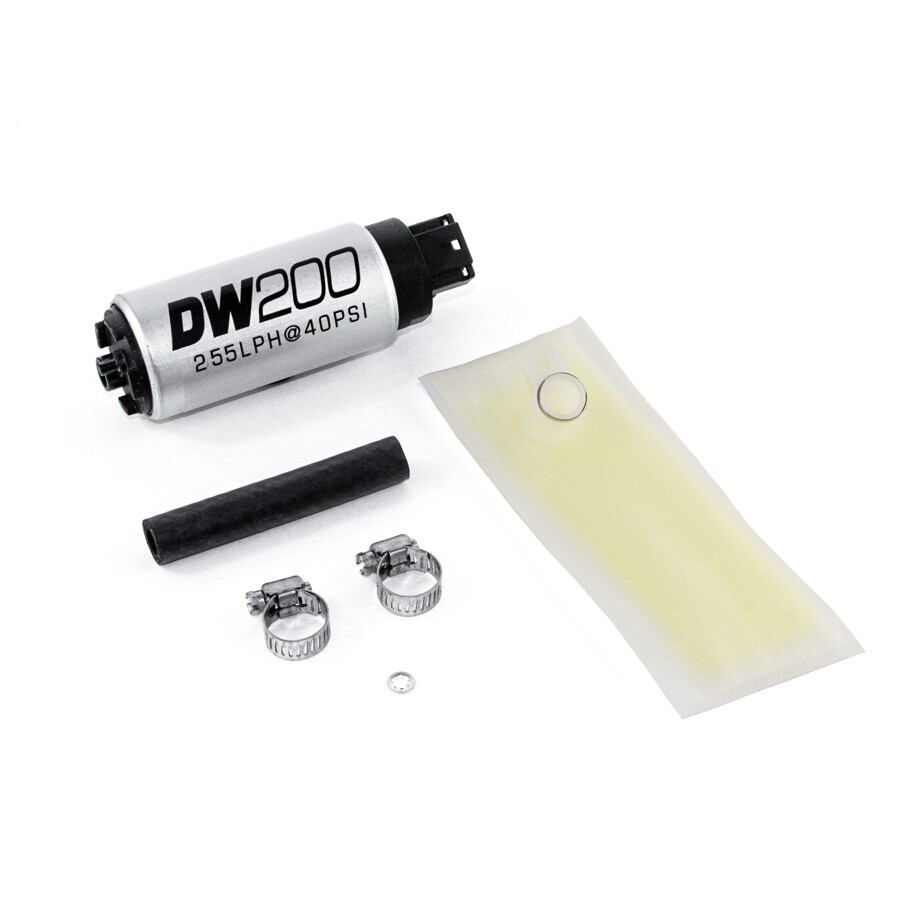

DEATSCHWERKS - DW200 255lph In-Tank Fuel Pump w/Install Kit (Integra 94-01/Civic 92-00)

DW Offers More Fuel Pump Options to Deliver the Flow You Want with the Fitment You Need.

Fuel pumps are not a one-size-fits-all type of product. Proper fuel delivery to your engine involves combining the right fitment and the right flow. This is why the DW fuel pump line is built to cover 7 different dimensional formats each having different fluid connections, electrical connections, diameters, and lengths. DW pump formats cover standard fitment in-tank, compact fitment in-tank, specialty fitment in-tank, and 2 different universal in-line pumps. Each pump formats is available in up to 4 different flow rates yielding over 20 different format+flow combinations to ensure you have the right pump for your build.

Application Specific Fitment

DW pioneered fuel injector application specific fitment. That experience has been applied to the DW line of fuel pumps. To achieve this feat, DW has built a library of over 100 different OE fuel pump modules from which application specific fitment kits can be made.

First, the proper format+flow combinations are selected. Then the o-rings, electrical connectors, clamps, filters, and spacers are chosen. Next, the pump is installed and bench tested in the OE module to ensure proper fitment and performance. Lastly, the entire process is documented and published into step-by-step illustrated instructions which can be downloaded from our website and used by the customer during installation. Application specific product development is a complex process, but DW has made it easy for the end customer… all you have to do is choose your year make and model.

High Torque = High Flow

A fuel injected internal combustion engine is a dynamic system. Fuel flow requirements vary greatly by rpm and load. However, one law remains universal: forced induction applications require more flow at higher pressures. Knowing this fact, DW has engineered their fuel pumps to maximize flow at higher pressures. By designing the armature for torque bias, delaying pressure relief activation, and maximizing impeller efficiency, DW has created a line of pumps with an extremely flat flow curve. Higher flow at higher pressure delivers the fuel your engine demands.

Ethantol Compatibility

Today's ethanol-enriched fuels are more corrosive than the fuels of the past. High-octane premium grade pump gas can contain up to 15% ethanol and e85 is becoming increasingly popular as an inexpensive readily available race fuel. Regardless of what fuel you prefer, DW has specifically engineered their pumps with ethanol in mind…

• Composite Impeller – DW turbine impellers are made of a lightweight composite that is both efficient and impervious to the corrosive nature of ethanol.
• Encapsulated Armature – DW motor armatures are fully encapsulated to protect the copper windings from ethanol deterioration
• Carbon Commutators and Brushes – The utilization of carbon in the wear components of the pump leads to a much longer life especially in high-heat and high-pressure conditions.
• Endurance Testing – DW performs in-house HALT (highly accelerated life testing) on all pump designs and in various fuels to find and eliminate common modes of failure.
