AEROFLOW - Universal EFI Fuel Delivery Kit

This kit features a high volume 255 L/PH external inline EFI pump that will provide enough fuel delivery for up to 600 HP. Kit also includes fuel lines, fittings and two billet fuel filters and enough premium quality hose for an inlet and return line. The filters include a 100 micron pre-filter and a 30 micron post filter. Note that when using this pump a return line to the fuel tank is required.

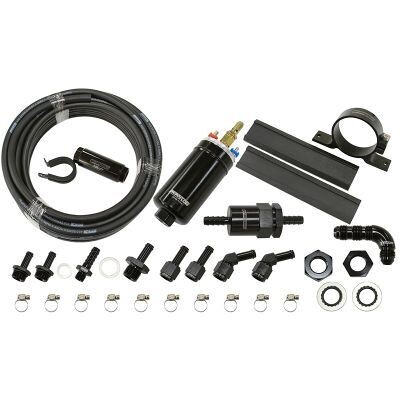

This Inline Fuel Delivery Kit rom Aeroflow Performance contains the following:

1 x Electric EFI In tank fuel pump (675hp Rated) (AF49-1014)
1 x 500 Series Push Lock Rubber Hose (-6AN, 3/8”, 9.52mm) (AF500-06-15MBLK)
1 x Aeroflow Pro Filter 60 Micron -8ORB (3.5” x 1.25”) Black Finish (AF66-2042BLK)
1 x Aeroflow Billet Fuel Filter 30 Micron 3/8” (9.5mm) Barbs (2” Length x 1-1/4” Diameter) (AF610-06BLK)
1 x Cushioned P-Clamp 28mm I.D Black finish (AF158-18BLK)
1 x EFI Fuel Pump Bracket Single Pump Black Finish (AF64-2000BLK)
10 x EFI Hose Clamps (AF26-1416)
2 x -8ORB to 3/8” (9.5mm) Barb fittings Black Finish (AF414-08-06BLK)
1 x M18 x 1.5mm to 3/8” (9.5mm) Barb Fittings Black Finish (AF734-00BLK)
1 x M12 x 1.5mm to 3/8” (9.5mm) Barb Fittings Black Finish (AF731-02BLK)
1 x 90 Degree -6AN Bulkhead Black Finish (AF533-06BLK)
1 x -6AN Bulkhead Nut Black Finish (AF924-06BLK)
2 x Stat-O-Seals suit -6AN Bulkhead 14.3mm ID (AF179-06)
2 x Straight Hose Barbs Female -6AN to 3/8” (9.52mm) Barb Black Finish (AF411-06BLK)
2 x 45 Degree Hose Barbs Female -6AN to 3/8” (9.52mm) Barb Black Finish (AF412-06BLK)
