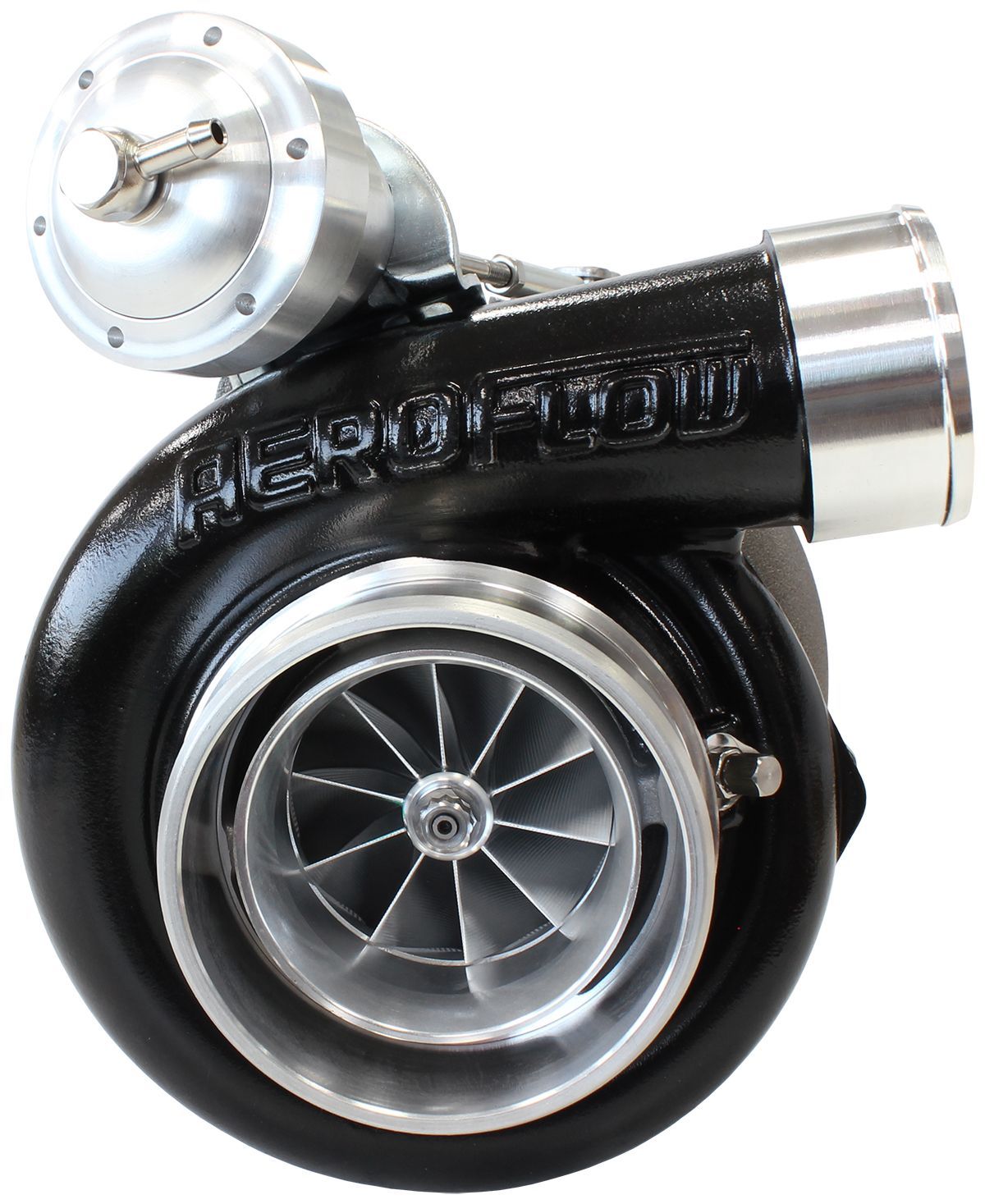

AEROFLOW - BOOSTED 6762 XR6 1.06 Turbocharger 1000HP, Hi Temp Black Finish

Aeroflow Performance Boosted turbochargers are designed specifically for the enthusiast who wants optimal performance at a competitive price. Boosted Turbochargers have a range of specific turbos to meet your power goals, driving style and budget. Boosted turbocharger's utilise billet compressor wheels and feature the latest aerodynamic design that maximises horsepower and boost response throughout the rev range. The turbine wheel is constructed from Inconel, a Super Alloy that maintains strength during prolonged exposure to extremely high exhaust gas temperatures.

Boosted Turbocharger's are available in 360° journal bearing, dual and triple ceramic ball bearing cartridges designed to prolong the turbo lifespan and improve shaft balance. Boosted Turbocharger's are also available in oil/water or oil cooled versions to help keep temperatures to a minimum. The boosted range of turbos are available with a ported shroud compressor cover housing which increases surge resistance and provides reliable, continuous power throughout the engine's RPM. Boosted turbochargers are available for a direct bolt-on for some Ford's and Nissan's with further models in development. Boosted turbos are available in natural aluminium or high temp black compressor cover options.

BOOSTED 6762 XR6 Turbocharger Specifications

Recommended horsepower rating: 550-1000HP

Recommended engine displacement: 2.0L to 5.5L

- Dual ceramicball bearing

- Point Milled 7075 billet compressor wheel

- Ported shroud compressor cover

- Speed sensor port included in compressor cover (Speed sensorsold separately, AF8050-1010)

- SiMo-nodular cast iron rear housing

- Standard 5-BoltXR6 turbine outlet flange

- T3 single entry turbine inlet flange

- M14 x 1.5mm coolant port thread

- 7/16"-24 oil feed fittingwith in-built restrictor (Warranty VOID if not used)

- 38mm bolt centre turbo drain flange with M8 x 1.25mm thread size

- Suits both Ford XR6 BA/BF and FG. Turbo housing will be supplied in BA/BF configuration

- Billet Internal wastegate actuator with 9psi spring (different rate springs sold separately)

- Internal wastegate hole size is 32mm

- New boost reference port is required for this turbocharger. Install boost reference port into front compressor cover or intercooler piping to suit theOEM boost controller

Compressor Specifications

• Inducer: 67mm
• Exducer: 84mm
• Extended Tip: 87.5mm
• A/R: 0.72
• Compressor Inlet: 4" Slip fit
• Compressor Outlet: 2.5" Slip fit

Turbine Specifications

• Inducer: 68mm
• Exducer: 62.3mm
• A/R: 1.06
• Turbine Inlet Flange: T3
• Turbine Outlet Flange: BA-BF XR6 5-Bolt

Wastegate

• Internal wastegate featuring 32mm port and 9psi actuator
